Diameter 180 mm.
With metal clamp.


Container able to fully empty.
Conical container.
Stackable containers with each other.
Printed outside and lacquered inside as option.
Cap already installed as an option.
Homologated.
icono

TECHNICAL INFORMATION TO PLACE YOUR ORDER:
PART NUMBER NOMINAL
CAPACITY (ml.)
MAXIMUM
CAPACITY (ml.)
TOP DIAMETER
D1 (mm.)
BOTTOM DIAMETER
D2 (mm.)
HEIGHT
H (mm.)
E1803MTB 3.000 3.920 180 167 173
E1803,5MTB 3.500 4.420 180 167 193
E1804MTB 4.000 4.850 180 167 210
E1805MTB 5.000 5.600 180 167 240
E1805,5MTB 5.500 5.800 180 167 248
E1806MTB 6.000 6.380 180 167 267
E1806,5MTB 6.500 6.730 180 167 285

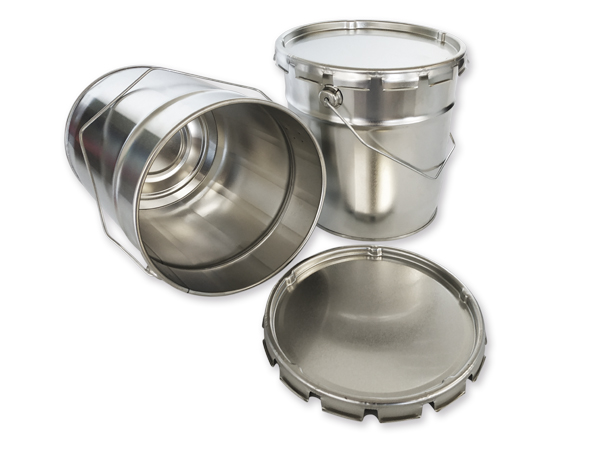

Diameter 180 mm.
With pail lid with curling ears.


Container able to fully empty.
Conical container.
Stackable containers with each other.
Printed outside and lacquered inside as option.
Internal coating as an option.
Cap already installed as an option.
Homologated.
icono

TECHNICAL INFORMATION TO PLACE YOUR ORDER:
PART NUMBER NOMINAL
CAPACITY (ml.)
MAXIMUM
CAPACITY (ml.)
TOP DIAMETER
D1 (mm.)
BOTTOM DIAMETER
D2 (mm.)
HEIGHT
H (mm.)
E1803MTP 3.000 3.920 180 167 173
E1803,5MTP 3.500 4.420 180 167 193
E1804MTP 4.000 4.850 180 167 210
E1805MTP 5.000 5.600 180 167 240
E1805,5MTP 5.500 5.800 180 167 248
E1806MTP 6.000 6.380 180 167 267
E1806,5MTP 6.500 6.730 180 167 285
