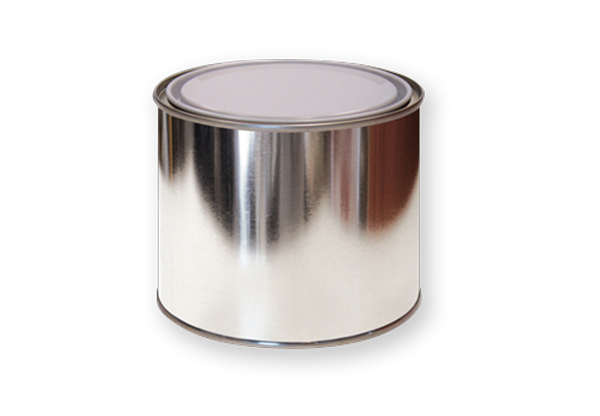

Diameter 62 mm.
With double tight closure.
Printed outside and lacquered inside as option.
Internal coating as an option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E062125MCA | 125 | 200 | 62 | 62 | 65 |

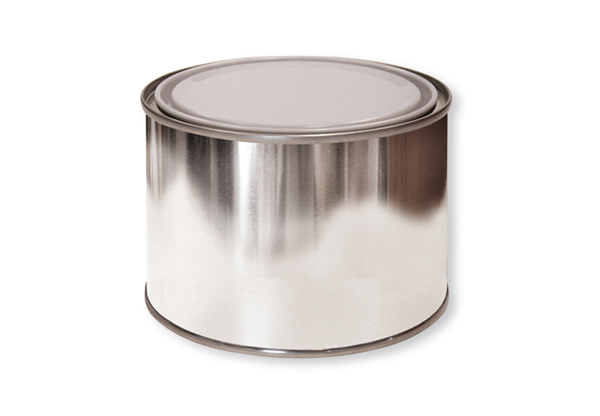

Diameter 70 mm.
With double tight closure.
Printed outside and lacquered inside as option.
Internal coating as an option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E070125MCA | 125 | 200 | 70 | 70 | 60 |
| E070250MCA | 250 | 240 | 70 | 70 | 74 |
| E070260MCA | 260 | 270 | 70 | 70 | 86 |

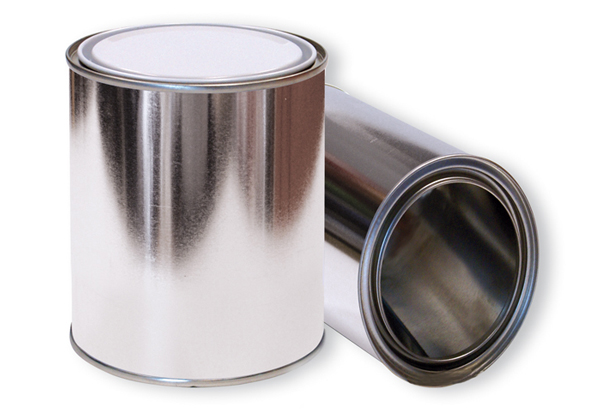

Diameter 80 mm.
With double tight closure.
Printed outside and lacquered inside as option.
Internal coating as an option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E080250MCA | 250 | 320 | 80 | 80 | 70 |
| E080375MCA | 375 | 430 | 80 | 80 | 96 |
| E080500MCA | 500 | 560 | 80 | 80 | 121 |
Diameter 85 mm.
With double tight closure.
Printed outside and lacquered inside as option.
Internal coating as an option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E085250MCA | 250 | 320 | 85 | 85 | 70 |
| E085375MCA | 375 | 430 | 85 | 85 | 96 |
| E085500MCA | 500 | 560 | 85 | 85 | 121 |
| E0851MCA | 1.000 | 1.025 | 85 | 85 | 220 |

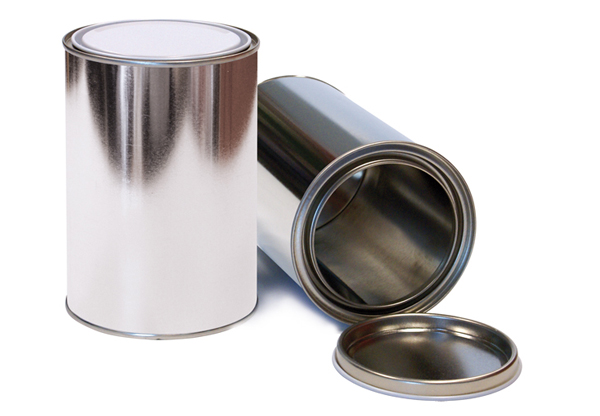

Diameter 100 mm.
With double tight closure.
Printed outside and lacquered inside as option.
Internal coating as an option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E100375MCA | 375 | 450 | 100 | 100 | 65 |
| E100500MCA | 500 | 550 | 100 | 100 | 86 |
| E100750MCA | 750 | 830 | 100 | 100 | 117 |
| E1001MCA | 1.000 | 1.080 | 100 | 100 | 151 |

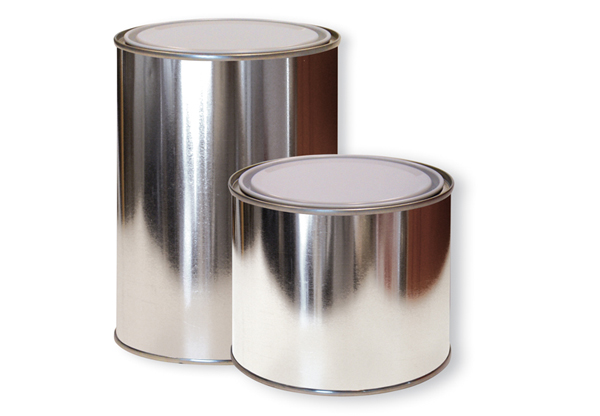

Diameter 108 mm.
With double tight closure.
Printed outside and lacquered inside as option.
Internal coating as an option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E1081MCA | 1.000 | 1.050 | 108 | 108 | 123 |
| E1081,05MCA | 1.050 | 1.100 | 108 | 108 | 130 |
| E1081,2MCA | 1.200 | 1.275 | 108 | 108 | 153 |

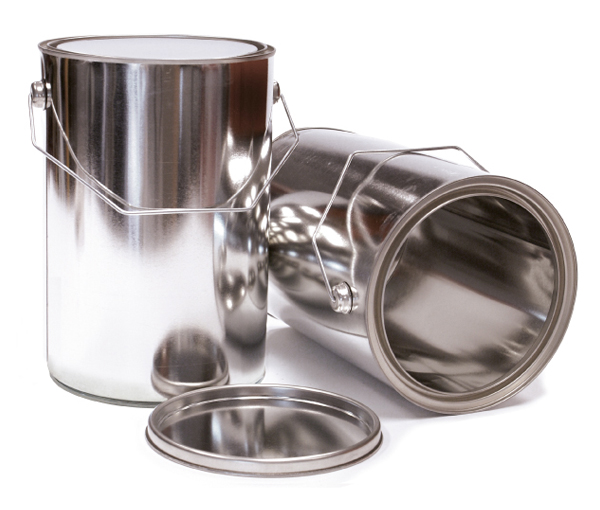

Diameter 170 mm.
With double tight closure.
Lining compound on top of the ring as an option.
Stackable containers with each other.
Printed outside and lacquered inside as option.
Internal coating as an option.
Cap already installed as an option.
Homologated
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E1702MCA | 2.000 | 2.190 | 170 | 165 | 113 |
| E1702,5MCA | 2.500 | 2.660 | 170 | 165 | 133 |
| E1703MCA | 3.000 | 3.160 | 170 | 165 | 155 |
| E1703,5MCA | 3.500 | 3.845 | 170 | 165 | 185 |
| E1704MCA | 4.000 | 4.340 | 170 | 165 | 207 |
| E1705MCA | 5.000 | 5.190 | 170 | 165 | 245 |
| E1705,5MCA | 5.500 | 5.770 | 170 | 165 | 270 |
| E1706MCA | 6.000 | 6.190 | 170 | 165 | 289 |
| E1706,5MCA | 6.500 | 6.650 | 170 | 165 | 310 |

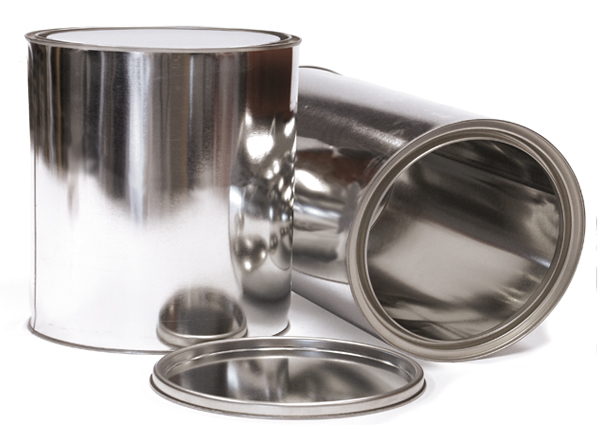

Diameter 214 mm.
With double tight closure.
Printed outside and lacquered inside as option.
Internal coating as an option.
Homologated
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E2148MCA | 8.000 | 8.100 | 214 | 214 | 244 |
