Diameter 180 mm.
With pail lid with curling ears.
Container able to fully empty.
Conical container.
Stackable containers with each other.
Printed outside and lacquered inside as option.
Internal coating as an option.
Cap already installed as an option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E1803MTP | 3.000 | 3.920 | 180 | 167 | 173 |
| E1803,5MTP | 3.500 | 4.420 | 180 | 167 | 193 |
| E1804MTP | 4.000 | 4.850 | 180 | 167 | 210 |
| E1805MTP | 5.000 | 5.600 | 180 | 167 | 240 |
| E1805,5MTP | 5.500 | 5.800 | 180 | 167 | 248 |
| E1806MTP | 6.000 | 6.380 | 180 | 167 | 267 |
| E1806,5MTP | 6.500 | 6.730 | 180 | 167 | 285 |

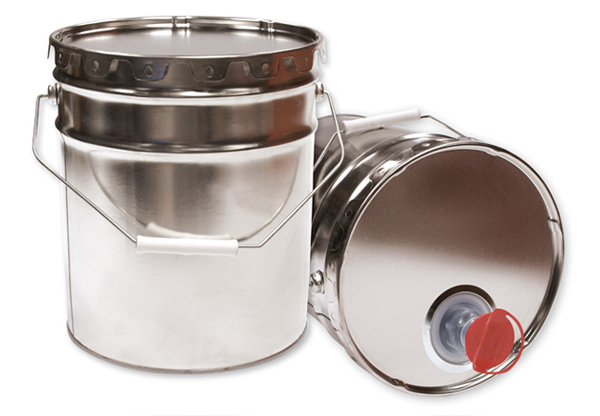

Diameter 240 mm.
With pail lid with ears.
Container able to fully empty.
Conical container.
Stackable containers with each other.
Printed outside and lacquered inside as option.
Internal coating as an option.
Cap already installed as an option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E2406MTP | 6.000 | 7.900 | 240 | 230 | 205 |
| E2408MTP | 8.000 | 10.150 | 240 | 230 | 260 |
| E24010MTP | 10.000 | 10.950 | 240 | 230 | 280 |
| E24012,5MTP | 12.500 | 12.550 | 240 | 230 | 310 |
| E24015MTP | 15.000 | 15.500 | 240 | 230 | 385 |

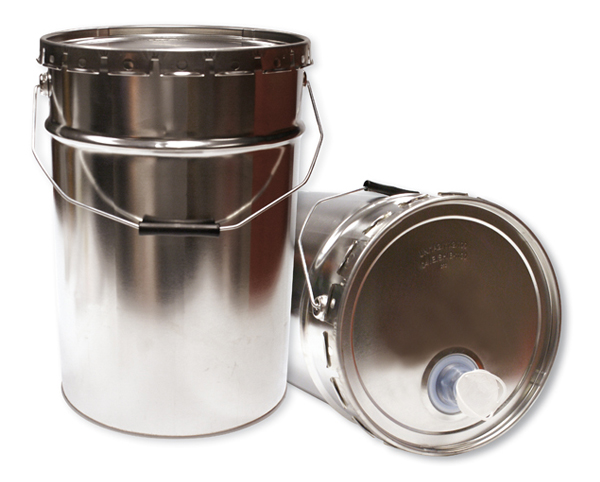

Diameter 292 mm.
With pail lid with curling ears.
Container able to fully empty.
Conical container.
Stackable containers with each other.
Printed outside and lacquered inside as option.
Internal coating as an option.
Cap already installed as an option.
Container also destined for food products.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E29210MTP | 10.000 | 11.000 | 292 | 279 | 202 |
| E29212,5MTP | 12.500 | 13.200 | 292 | 279 | 239 |
| E29215MTP | 15.000 | 15.750 | 292 | 279 | 278 |
| E29216,5MTP | 16.500 | 17.080 | 292 | 279 | 293 |
| E29218MTP | 18.000 | 19.100 | 292 | 279 | 323 |
| E29221MTP | 21.000 | 21.500 | 292 | 279 | 356 |
| E29222MTP | 22.000 | 22.600 | 292 | 279 | 379 |
| E29225MTP | 25.000 | 25.600 | 292 | 279 | 424 |
| E29226MTP | 26.000 | 26.600 | 292 | 279 | 442 |
| E29227MTP | 27.000 | 28.200 | 292 | 279 | 466 |

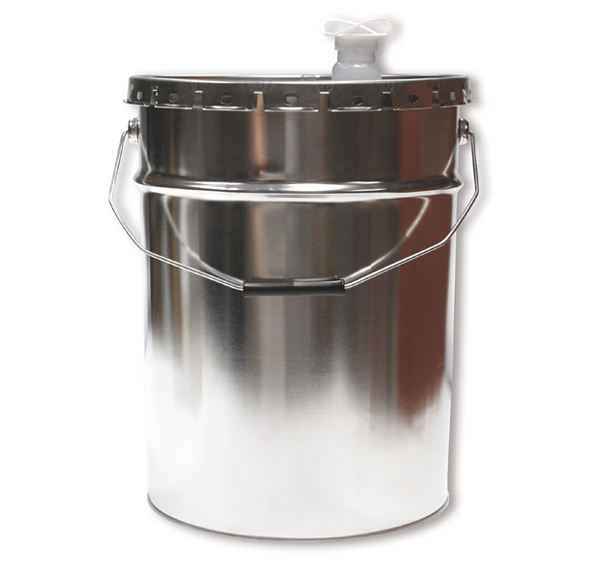

Diameter 305 mm.
With pail lid with curling ears.
Container able to fully empty.
Conical container.
Stackable containers with each other.
Printed outside and lacquered inside as option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E30520MTP | 20.000 | 21.100 | 305 | 284 | 331 |
| E30522MTP | 22.000 | 22.500 | 305 | 284 | 358 |
| E30525MTP | 25.000 | 27.200 | 305 | 284 | 399 |
