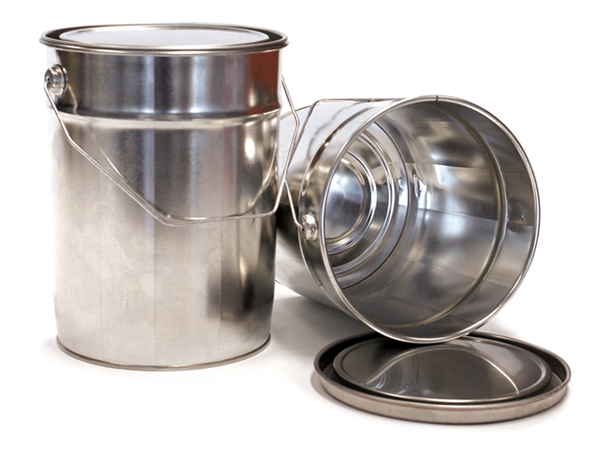

Diameter 180 mm.
With pressure lid.
Container able to fully empty.
Conical container.
Stackable containers with each other.
Printed outside and lacquered inside as option.
Internal coating as an option.
Cap already installed as an option.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E1803MTV | 3.000 | 4.180 | 180 | 167 | 174 |
| E1804MTV | 4.000 | 4.500 | 180 | 167 | 208 |
| E1805,5MTV | 5.500 | 5.550 | 180 | 167 | 237 |
| E1806MTV | 6.000 | 6.290 | 180 | 167 | 267 |
| E1806,2MTV | 6.200 | 6.550 | 180 | 167 | 278 |

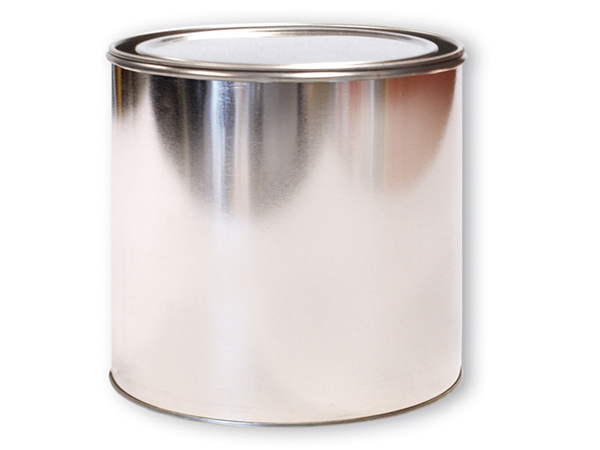

Diameter 214 mm.
With pressure lid.
Container able to fully empty.
Printed outside and lacquered inside as option.
Internal coating as an option.
Container also destined for food products.
Homologated.
| PART NUMBER | NOMINAL CAPACITY (ml.) |
MAXIMUM CAPACITY (ml.) |
TOP DIAMETER D1 (mm.) |
BOTTOM DIAMETER D2 (mm.) |
HEIGHT H (mm.) |
|---|---|---|---|---|---|
| E2148MCV | 8.000 | 8.550 | 214 | 214 | 243 |
